Stitchers
Uniquely designed stitcher fasteners for almost every application.

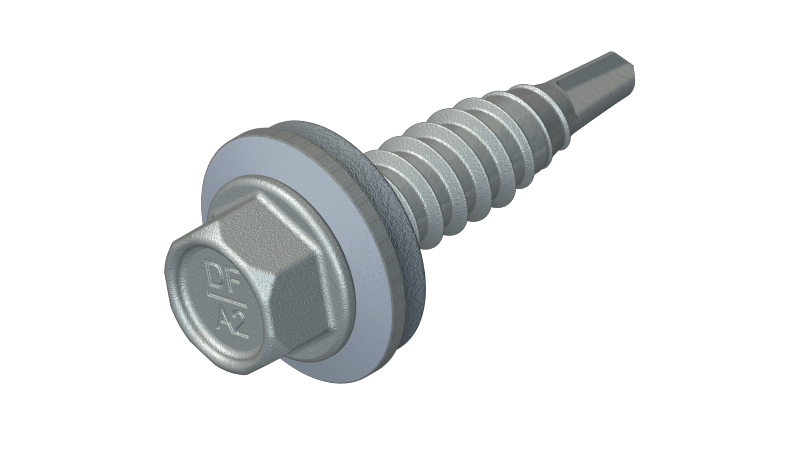

All our stitcher fasteners come with a spin-free zone below the head, preventing the fastener from being over-driven, unwinding, or stripping the thread during installation. Whilst supporting the top sheet without engaging the thread, the washer can then create a waterproof and secure seal.
In carbon or stainless steel, our DF2 stitcher range complements our composite panel fastener range: fasteners for a variety of applications.
Where can I use these fixings?

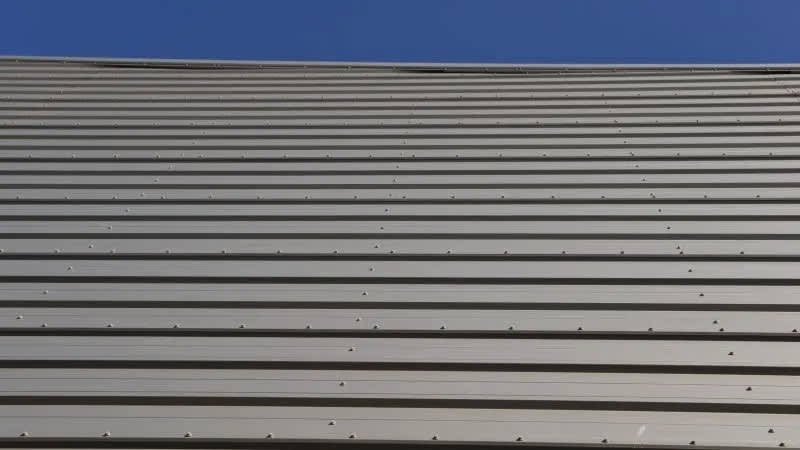

Stitching roof sheets
6.3mm diameter fixings for stitching roof sheets up to 2mm thick – a larger diameter ensures higher pull-out performance.

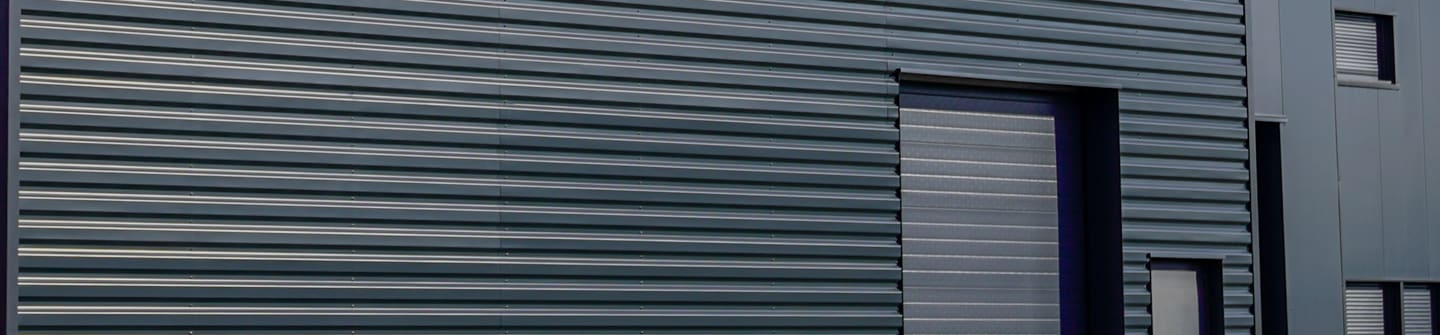

Stitching wall sheets
6.3mm diameter or 4.8mm diameter fixings for stitching in wall applications
Rooflight stitcher fix
Specialist fasteners for stitching translucent rooflight materials such as GRP, or in fibre cement applications.
Repair stitcher fix
With a large 8.0mm diameter thread, these fasteners are suited for repair or replacement applications.
Dual purpose: light section or stitcher fix
In carbon steel only, dual purpose fasteners suitable for fixing steel sheeting & brackets to light steel – or as a sheet stitching fastener.
Drill Points
2 x 1mm steel – our DF2 range is suitable clamping 2 layers of material together as a secondary fastener.
Steel Grades
Carbon Steel
Carbon steel is suitable for use in internal or external applications in non-corrosive, non-coastal environments.
All our carbon steel fasteners feature a corrosion-resistant organic coating which provides lubrication for ease of drilling while also preventing damage to the steel.
Stainless Steel A2/304
Our A2/304 Stainless Steel fasteners provide excellent corrosion resistance and are suitable for use in medium risk corrosivity environments, or on projects using Aluminium sheeting or components.
Stainless Steel A4/316
A4/316 Stainless Steel is a super-austenitic alloy containing high levels of molybdenum, nitrogen and nickel – ensuring it is highly resistant to corrosion, tarnishing and stress.
Sheeting & cladding on our Skills Hub
Discover more sheeting & cladding articles on our Skills Hub
Head Styles
Precision engineered hexagon heads for easier driving.
Glass-fibre reinforced, bi-hex, UV resistant nylon heads, moulded for exceptional impact resistance .
Complementing the best in modern construction techniques, our low profile fasteners are designed for a discreet finish.
Highly durable powder-coated heads to blend in with any colour building – we can lacquer to a wide range of colours and offer a precise colour matching service.
Sealing washers
A variety of washer materials and diameters are available to suit all roofing, cladding & façade applications.
These are the general recommendations for washer sizes; however, consideration should be given to the corrugation dimensions and system manufacturer specifications.
| Code | Material | Diameter | Application |
|---|---|---|---|
| A10 | Aluminium (also available in Stainless Steel) | 10mm | Detail work |
| A15 | Aluminium (also available in Stainless Steel) | 15mm | Vertical cladding |
| A19 | Aluminium (also available in Stainless Steel) | 19mm | Roof sheeting |
